Large Span Safety High Rise Prefab Storage Steel Structure Frame Apartment Hotel

Brand Name : KXD

Model Number : KXD-s256

Certification : BV,ISO

Place of Origin : Qingdao,China

MOQ : 100 sqm

Price : $ 80-100 per sqm

Payment Terms : L/C,T/T

Supply Ability : 200000 tons/month

Delivery Time : 30 day

Customization : High, modules can be customized to design specifications

Coating : Galvanized or Painting

Assembly Time : Short

Customization Options : Available

Durability : High, designed to withstand transportation and installation stresses

Wall Type : Sandwich Panel

Contact Now

Large Span Safety High Rise Prefab Storage Steel Structure Frame Apartment Hotel

Steel buildings are becoming more and more popular in the construction industry. It is widely used as commerical shop buildings, warehouse, workshop, storage buildings, logistics base. The advantages of steel buildings include their durability, low cost compared to conventional construction and the fact that they take much less time to build than do other types of new construction. Steel building prices can vary depending on a few different factors, one of the most important being the price of steel at the time.

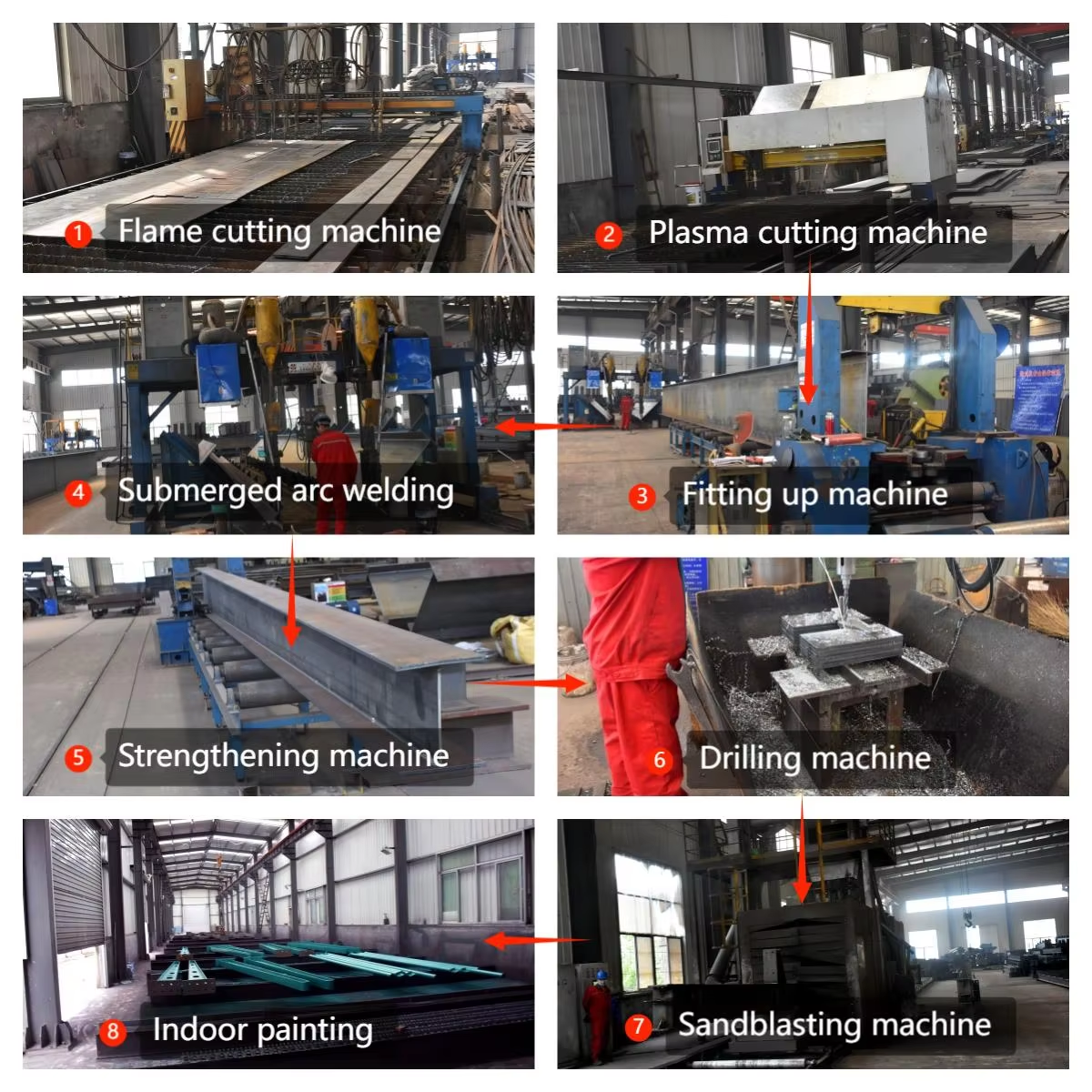

The main steel frame structure of steel buildings are welded H-section steel columns and beams that is connected by high strength bolts.All the steel structure compoents are welded in our factory with CNC machine. We could design it to be single span, double span, portal frame or truss roof.

Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.

Item name	Specification	Material Parameter	Technical Treatment
Column	H shape,Box,steel pipe,Hot rolled sheet	Q235B,Q355B	Paint or Hot dip galvanized
Beam	H shape,steel Truss,Hot rolled sheet	Q235B,Q355B	Paint or Hot dip galvanized
Bracing	Steel rod,Steel pipe,Angle steel	Q235B,Q355B
Purling	C or Z shape, purling Thickness:1.8mm~3.0mm	Q235B,Q355B	Hot dip galvanized
Wall and roof panel	EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet.	Steel T=0.426~0.8mm,insulation T=50~150mm	Alu-zinc 150g, Fluorocarbon paint
Door	Sliding or rolling door	Steel or Aluminum sheet,T=1.0~1.5mm	Paint or Hot dip galvanized
Window	alloy-Glass,Aluminium alloy-shutter	T=1.0~2.0mm	Alloy
Lighting panel	FRP, T=1.5mm or T=1.8mm	Coefficient of thermal expansion:2.2x10-5/cm/cm/℃	Light transmittance 85%
Ventilator	Turbine ventilator, and electric type	Steel,stainless steel,PC	Paint or Hot dip galvanized,304
Gutter	Galvanized or stainless steel plate	T=2.0mm	Hot dip galvanized,304
Downpipe	PVC pipe,Color steel pipe T=0.5mm	Φ110,160,200	Paint
Bolt	Ordinary, high strength	10.9S,4.8s	Hot dip galvanized
Anchor bolt	Steel rod M24,M27 M30	Q235B
