Fast Build Prefab Steel Structure Workshop for Biodiesel Production Plant

Brand Name : KXD

Model Number : KXD-SWT010

Certification : SGS ISO

Place of Origin : Qingdao

MOQ : 500 Square Meters (MOQ)

Price : US$50.00

Payment Terms : T/T

Supply Ability : 5000 Sets/Month

Delivery Time : 30days

Construction Time : Short

Thickness Of Panel : 50mm, 75mm, 100mm, 150mm, 200mm, 250mm

Frame : Square tube, hot dip galvanized

Purlin : C.Z Shape Steel Channel

Main Frame : Welded H Steel Beam, Steel Truss

Raw Steel Material : Q235B, Q355B, ASTM A36

Life Time : over 50 Years

Column And Purlin : C Section And Z Section

Earthquake Resistance : Strong

Raw Material : Carbon Steel

Aesthetics : Modern/Contemporary

Frametype : Steel frame

Carbon Structural Steel : Q235B

Durability : High

Structure Type : Frame

Contact Now

Fast Build Prefab Steel Structure Workshop for Biodiesel Production Plant

Prefabricated steel structure biodiesel workshop, fast construction, anti-corrosion, fireproof, suitable for biodiesel production, raw material storage and finished oil tank area.

With 20 year warranty in the steel building industry,our company has standard on the quality of steel building. We have acquired the ISO9001 and CE certificate. The followings are the related standard that we strictly follow whether for the design and fabrication of steel buildings:

GB/T1591-2008/2018
GB/T11263-2010
GB/T 2518-2008
GB/T12754-2006
GB/T 1228-2006
Here we take an example on the Process, fabrication and quality control standard on fillet weld size.

Advantages

Fast construction speed:Prefabricated steel structure, short on-site construction period, supports quick production launch for biodiesel lines.
Anti-corrosion for chemical environments:Professional anti-corrosion coating available, resistant to grease, chemical additives and acid-base corrosion in biodiesel factories.
Large clear span without middle columns:Easy to place reactors, distillation equipment, storage tanks and production pipelines with flexible layout.
Custom fireproof & explosion-proof design:Fireproof rock wool sandwich panels and explosion-proof beams optional, meeting safety standards for chemical & energy workshops.
High load-bearing & good sealing performance:Suitable for heavy equipment and pipe installation; prevents oil leakage, dust and chemical diffusion.
Easy expansion & modification:Convenient to extend workshops, tank areas and raw material warehouses when upgrading production capacity.
Complete certification support:CE & ISO compliant, meets overseas factory inspection & approval requirements.

Uses

Main production workshop for biodiesel reaction, esterification and purification processes
Raw material warehouse for waste oil, vegetable oil and biodiesel feedstock
Canopy & shelter for finished biodiesel storage tank areas
Sealed storage building for chemical additives and catalysts
Auxiliary workshop for wastewater treatment and waste liquid recycling
Supporting office buildings, control rooms & staff facilities in the factory

Applications

Biodiesel manufacturing plants & renewable energy production bases
Waste grease recycling & reprocessing industrial parks
Large-scale fuel oil deep processing industrial projects
Environmental protection chemical factories with strict anti-corrosion demands
Turnkey prefab factory projects for overseas energy investors

Material Specifications
No	Components		Specifications	Minimum yield strength		Applicable Design Code
1	Built -up (Plates)		GB/T1591-2008	Fy = 34.5 kN/cm²		CISA - China Iron & Steel Association - Latest Edition
2	Hot Rolled	Angles	GB/T3274-2007	Fy = 23.5 kN/cm²	CISA - China Iron & Steel Association - Latest Edition
		Beams	GB/T11263-2010	Fy = 23.5 kN/cm²	CISA - China Iron & Steel Association - Latest Edition
3	Cold Form	Galvanized	GB/T 2518-2008	Fy = 45.0 kN/cm²		CISA - China Iron & Steel Association - Latest Edition
4	Roof panel/Wall panel (Zinc)		GB/T12754-2006	Fy = 34.5 kN/cm²		CISA - China Iron & Steel Association - Latest Edition
5	Roof panel/Wall panel (Alu)		GB/T12754-2006	Fy = 34.5 kN/cm²		CISA - China Iron & Steel Association - Latest Edition
6	X-Bracing	Galvanized cable bracing	GB/T 700-2006	Fu = 157 kN/cm²		CISA - China Iron & Steel Association - Latest Edition
7	Anchor bolts		GB/T 700-2006	Fu = 40.0 kN/cm²		CISA - China Iron & Steel Association - Latest Edition
8	High strength Bolts		GB/T 1228-2006	Ft = 30.3 kN/cm² Fu = 72 to 83 kN/cm²		CISA - China Iron & Steel Association - Latest Edition
9	Machine Bolts		GB/T 1228-2006	Ft = 13.8 kN/cm² Fu = 41.0 kN/cm²		CISA - China Iron & Steel Association - Latest Edition

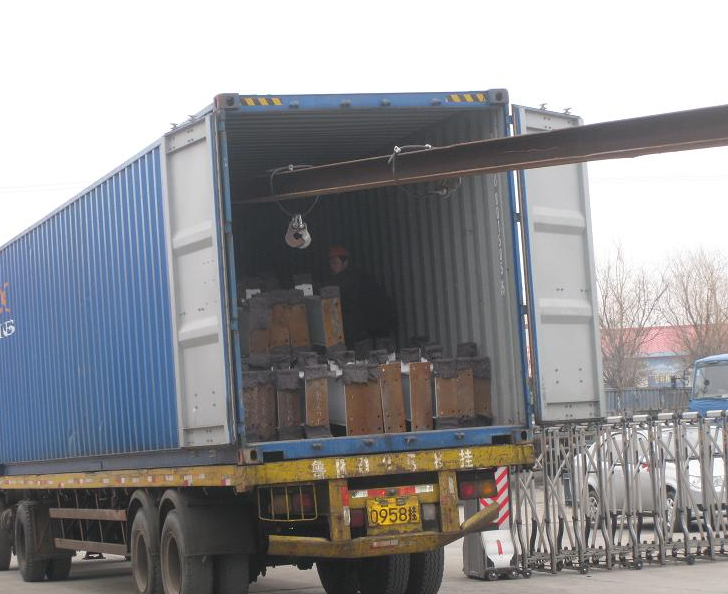

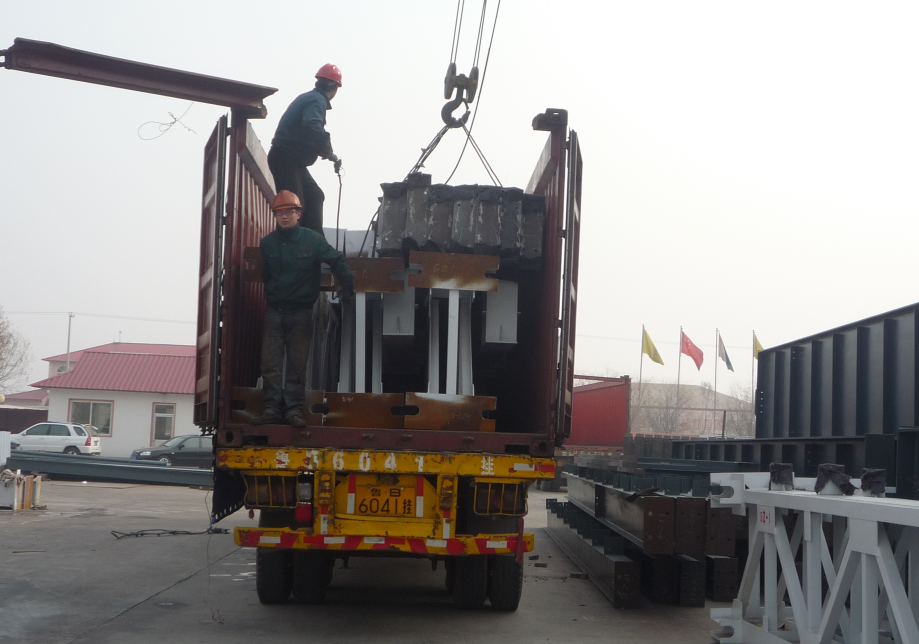

Loading

Fast Build Prefab Steel Structure Workshop for Biodiesel Production Plant

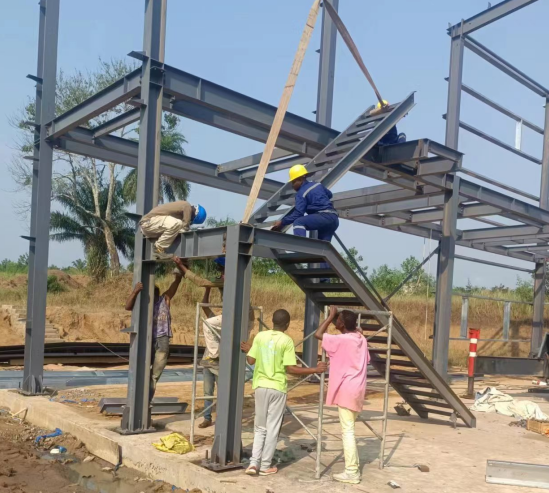

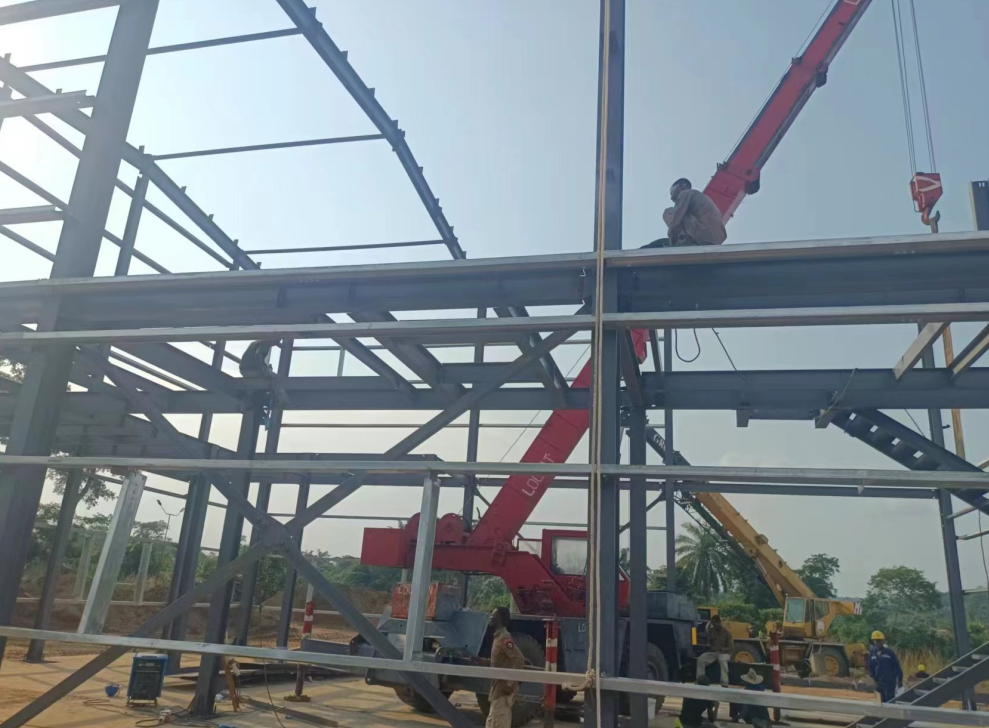

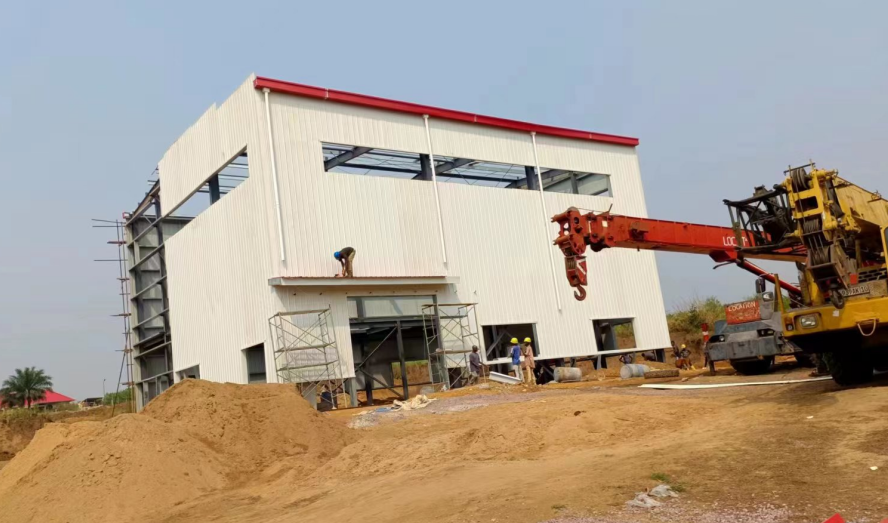

Installation

Fast Build Prefab Steel Structure Workshop for Biodiesel Production Plant

Certification

Fast Build Prefab Steel Structure Workshop for Biodiesel Production Plant
